Titanium Grade 5 (Ti6Al-4V) is the most commonly used alloy. Ti6Al4V is significantly stronger than other commercially pure titanium whilst still retaining the same stiffness and thermal properties (excluding thermal conductivity). Titanium Grade 5 extensively used in Aerospace, Medical, Marine and Chemical Processing.
| Chemical Composition Limits | ||||||||||
| Weight % | Ti | C | Fe | N | Al | O | V | H | Y | Other |
| Ti-6Al-4V | bal | 0.08 | 0.03 | 0.05 | 5.5-6.75 | 0.20 | 3.5-4.5 | 0.015 | 0.005 | 0.40 |
| Material | Diameter | Tensile Strength min | Yield Strength | Elongation in 2″ | Reduction of Area % | ||
| ksi | Mpa | ksi | MPa | ||||
| Titanium Alpha-Beta Ti-6Al-4V Annealed Bar (min) |
<2.00″ | 135 | 931 | 125 | 862 | 10 | 25 |
| Titanium Alpha-Beta Ti-6Al-4V Annealed Bar (min) |
2.00″ – 4.00″ | 130 | 896 | 120 | 827 | 10 | 25 |
| Titanium Alpha-Beta Ti-6Al-4V Annealed Bar (min) |
>4.00″ | 130 | 896 | 120 | 827 | 8 | 20 |
| as per AMS 4928 | |||||||
| Material | Thickness | Tensile Strength | Yield Strength | Elongation in 2″ % | ||
| Ksi | MPa | Ksi | MPa | |||
| Titanium Alpha-Beta Ti-6Al-4V Annealed Sheet |
0.025″ – 0.063″ | 134 | 920 | 126 | 866 | 8 |
| Titanium Alpha-Beta Ti-6Al-4V Annealed Sheet |
0.063″ – 0.1875″ | 134 | 920 | 126 | 866 | 10 |
| Titanium Alpha-Beta Ti-6Al-4V Annealed Sheet |
0.1875 – 4.00″ | 130 | 893 | 120 | 823 | 10 |
| as per MIL-T-9046J, AMS-T-9046, AMS 4911 | ||||||
Availability

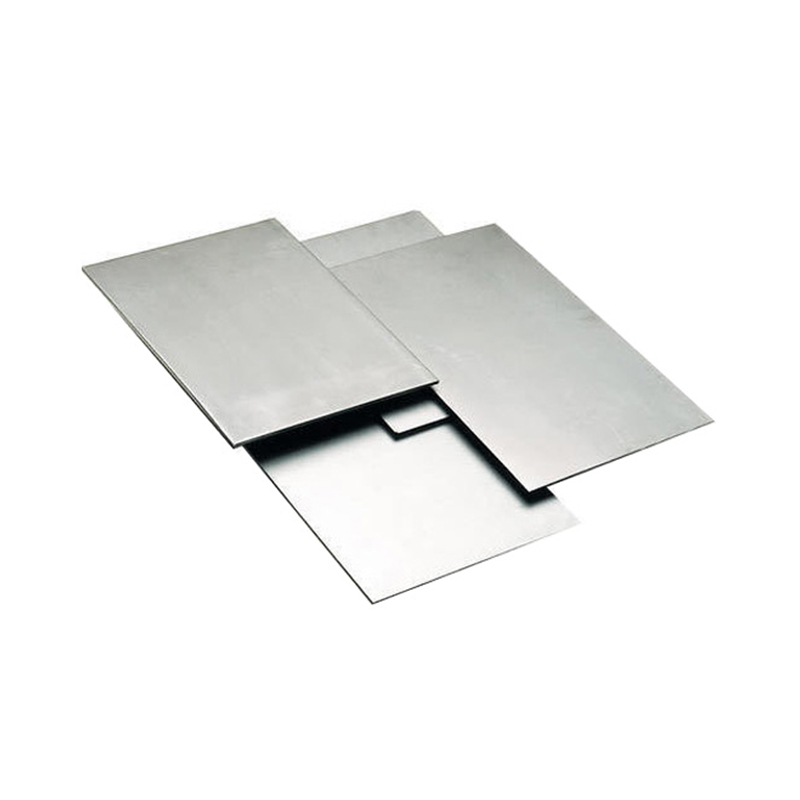

Titanium 6Al4V is available in: Bar, Billet, Castings, Extrusion, Plate, Sheet, Strip, Wire, Welding Wire , Rings and Forgings. For further stock and size information contact Sales .
NEW – Aircraft Materials now offers a comprehensive range of high-quality Ti-6Al-4V metal powders, produced and tested to exacting standards for use in all processes including Additive Manufacturing (AM), Near-Net Shape Powder Metallurgy (NNS/PS) and Hot-Isostatic Pressing (HIP). Find out more email us with your quality Ti-6Al-4V metal powder requirements.
Specifications
| British Spec | American Spec | ASTM Specs | European Specs |
| BS 3 TA10 sheet,strip BS 3 TA11 bar BS 2 TA12 forging stock BS 2 TA13 forgings BS 3 TA28 forging stock, wire (Tensile 1100-1300MPa) BS 2 TA56 plate BS 2 TA59 sheet,strip MSRR 8614 MSRR 8652 DTD 5163 DTD 5363 |
AMS 4907 ELI Sheet, strip, plate (annealed- ELI) AMS 4911 Sheet, strip, plate (annealed) AMS 4928 Bar, wire, forgings (annealed) AMS 4930 ELI Bar, wire, forgings (annealed- ELI) AMS 4931 ELI Bar, wire, forgings (duplex annealed- ELI) AMS 4963 Bar, wire, forgings (modified strength) AMS 4965 Bar, wire, forgings (solution treated & aged) AMS 4967 Bar, wire, forgings (annealed, heat treatable) AMS 4985 Investment castings (130ksi UTS) AMS 4991 Investment castings (Hot Isostatic Pressed) AMS 6931 Bar, wire, forgings (annealed) AMS 6932 Bar, wire, forgings (annealed- ELI)AMS-T-9046 AB-1 Sheet, strip, plate (annealed) AMS-T-9046 AB-2 (ELI) Sheet, strip, plate (annealed- ELI) AMS-T-9047 6Al-4v Bar, wire, forgings (annealed) AMS-T-9047 6Al-4v (ELI) Bar, wire, forgings (annealed- ELI) MIL-T-9046J AB-1 Sheet, strip, plate (annealed) |
ASTM Specifications ASTM B265 Gr5 Sheet/plate ASTM B348 Gr5 bar ASTM B367 Gr5 castings ASTM B381 Gr5 forgings ASTM F136 Gr5 Implant Grade(*ground*) ASTM F467 Gr5 nuts ASTM F468 Gr5 bolts ASTM F2924-14 Powder |
EN 3311 ASNA 3304 ASNA 3307 DMD 776-24 DMD 774-25 WS 3.7164 (Aerospace) WS 3.7165 |
